Kenwood DMX 9720 XS

10.1" High Definition Monitor with Capacitive Touch Panel
Floating Panel Mechanism with 3-way Position Adjustment
Wired & Wireless Apple CarPlay™
Android Auto™ & Android Auto™ Wireless
High-Resolution Audio Wireless
Wireless Mirroring for Android
4 Camera Inputs
HD Front/Rear Camera Ready

Built-in Bluetooth
3 Preouts 5V

Share on

OVERVIEW
SPECIFICATION

Products Overview

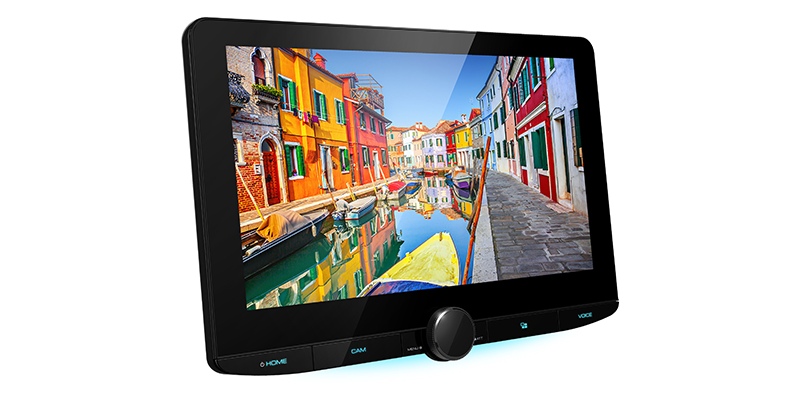

INTRODUCING A REVOLUTIONARY 10.1 INCH HD DISPLAY

Large 10.1 inch HD display

Provides room for more information that is large and easy to see with just a glance.

High Definition
— Overwhelming Power of Expression —

10.1" Display features an electrostatic capacitive touch panel and HD 1280 x 720 pixel LCD panel with high luminance white LED backlight and superior wide viewing

BONDED OPTICAL DISPLAY
— VIVID COLORS WITH HIGH CONTRAST —

Optical Clear Adhesive (OCA) is added between the touch screen and the LCD to eliminate the air layer and suppress light reflection and glare. This feature enhances the contrast and brightness and maintains the visibility of the display in various environments.

WIDER VIEWING ANGLE
— BEAUTIFUL FROM ANY SEAT —

The AAS display technology of the LCD panel assures you a wider viewing angle of 170° for both horizontal and vertical directions. Together with the protective film which minimizes reflection and glare from sunlight, you can enjoy clear images even from the passenger or back seats.

from Above 85°

from Left 85°

from Right 85°

from Below 85°

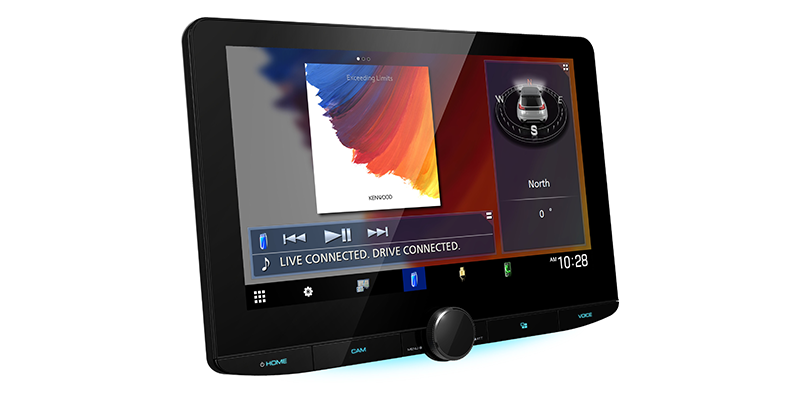

DRIVING WIDGET HOME SCREEN

The 10.1" home screen is composed of a Driving Widget as well as a Source Control Widget overlaid on the background. You can move the Driving Widget from side to side or enlarge the Source Control Widget to optimize the screen for your intuitive operation. The Driving Widget allows selection of a clock, compass, or equalizer setting, etc., while the background allows selection of album art, audio visualizer, or photo.

FLOATING PANEL MECHANISM WITH
3-WAY POSITION ADJUSTMENT

Fully adjustable display allows you to change the depth, height and angle for easy vehicle fitment.
Forward / Backward 20mm
Up / Down 39mm
Tilt: -10°/ +45°

Smartphone Connectivity

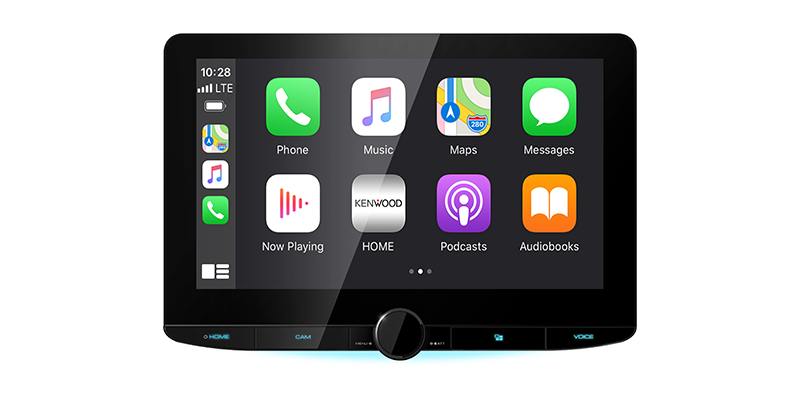

Safe, Smart and Comprehensive Control with Apple CarPlay™

Apple CarPlay™ is a safer way to use your iPhone in the car. Simply talk to Siri or touch the receiver’s display to get directions from Apple Maps, make phone calls, listen to voicemail, send and receive texts, and listen to music from Apple Music or your favorite 3rd party streaming service like Spotify, all in a way that allows you to stay focused on the road. With the latest iOS version (iOS 12.0 and higher), 3rd party navigation apps like Google Maps and Waze are also supported.
New KENWOOD Wi-Fi receivers now support Apple CarPlay™ wirelessly (compatible phone required).

Android Auto for Easy Connectivity

Android Auto was designed with safety in mind, helping you to minimize distractions and stay focused on the road. KENWOOD’s multimedia receivers combine an intuitive voice controlled interface with a large touch screen and superior sound quality, making it the perfect complement for your in-car life. You can even listen to and control music from your favorite streaming service like Spotify. Navigate to where you need to with Google Maps or Waze.
New KENWOOD Wi-Fi receivers also support Android Auto wirelessly
(compatible phone required).

to wirelessly use Android Auto on your car display, you need a compatible Android smartphone with an active data plan. You can check which smartphones are compatible at g.co/androidauto/requirements.

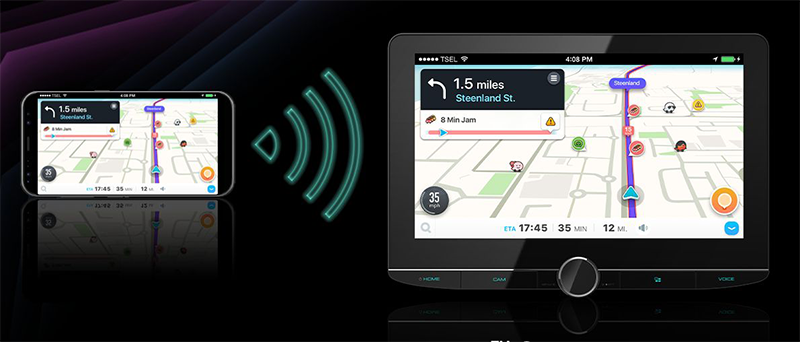

Wireless Mirroring for Android

Solution for seamlessly displaying and controlling your smartphone apps on a screen without cables on select Android devices.

HDMI Input

Display your smartphone screen or other device via an HDMI cable (and third party adapter as applicable) on the 10.1" monitor.

Equipped with the Intuitive KENWOOD Music Mix

Up to 5 Bluetooth® devices can be connected to the receiver at the same time, allowing you to take turns streaming music with your friends and family.

Dual Phone Connection

While you are connected through Bluetooth, with a touch of a button you can switch between two phones.

The Best Audio Experience

High-Resolution Audio Wireless

High-Resolution Audio is high-quality sound that exceeds CD standard. High-Resolution Audio captures and beautifully expresses all the details of your favorite music. Through ultra-high and low frequencies, immerse yourself in a rich and high-quality listening experience. Selected KENWOOD receivers now support High-Resolution Audio Wirelessly via LDAC. LDAC is an audio coding technology that enables the transmission of High-Resolution Audio over a Bluetooth connection.

Optimal Sound Performance with 13 Band Graphic EQ and Time Alignment

Use the graphic equalizer to tailor the sound quality to your unique tastes. Additional sound staging is available with the Time Alignment feature, designed to provide optimal sound performance.

Parametric Equalizer

You can fine-tune advanced sound properties to achieve professional audio sound quality in your vehicle. It allows you to set parameters of Q factor, slope, frequency and gain at 14 points separately (Common: 9 / Front: 2 / Rear: 2 / Subwoofer: 1). With adjustments such as high and low shelving filters, more realistic sound can be delivered.

High Quality Audio Parts Supporting High-Resolution Audio Reproduction

To ensure the best possible sound quality, the receivers use custom-made and carefully selected parts, such as audio quality power supply capacitors, high quality coupling capacitors. These parts are further optimized through meticulous tuning of the component values and circuit paths.

Playable FULL HD Video and FLAC Files

You can play back from USB devices audio and video files compressed in various formats.

Video CodecPlayable up toMPEG41920 × 1080pH.2641920 × 1080pMKV1920 × 1080pWMV1920 × 1080p

USB sources are available on rear monitor via video output.
The powerful USB provides max 1.5A quick charge for selected Android and 1.0A charge for iPhone.

HD Front / Rear Camera Input

The optional CMOS-740HD camera can be connected to the receiver’s front or rear camera input, displaying the image in true 1280 x 720 (720P) High Definition on compatible receivers. The camera’s built in High Dynamic Range technology further helps to overcome the negative effects of dark or bright conditions, making it the safest front or rear camera option available.

Rear View Camera Input with Parking Guide Lines

An optional rear view camera enhances safety while backing up and monitoring behind your vehicle. Built-in, adjustable parking guidelines further add to its effectiveness.

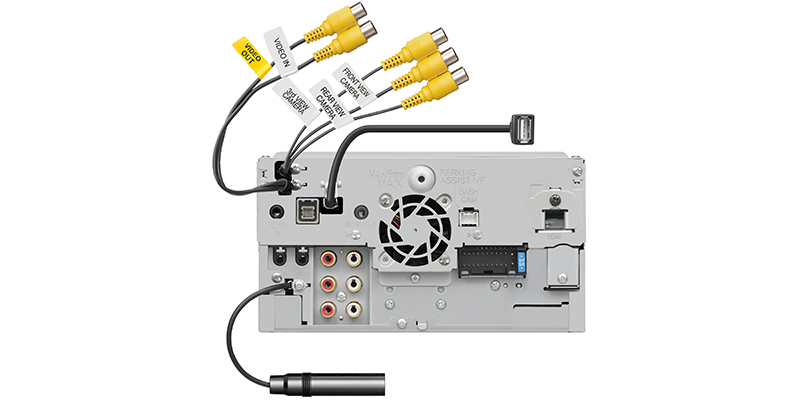

4 Camera Inputs

To enable a smarter driving experience, receivers featuring 4 camera inputs allow for the utmost in convenience, flexibility, and safety. With 4 camera inputs, you can connect a rear camera, side (blind spot) cameras, and a KENWOOD dashboard camera (DRV-N520 sold separately). Alternatively, 4 camera inputs can support several other configurations, including the connection of 2 side cameras, a front HD camera, and a rear HD camera (CMOS-740HD sold separately). Camera switching is available using on screen controls.

Dash Cam Link Ready

Full HD video recording is available with a DRV-N520 compact windshield mount camera that can record every event in front of you while you drive. High Dynamic Range (HDR) allows flawless recording regardless of extreme bright light or very dark conditions. With a built-in gyro sensor, if an accident occurs it will be saved in a separate portion of memory within the 8GB SD card for viewing. Additional safety and warning features can be activated to avoid frontal collisions or remind you if traffic has moved in front of you.

Specification

Monitor Section :

* Picture size10.1inches(diagonal)

* WideW x H223.7 x 125.8 (mm)

* Display systemAAS LCD panel

* Drive systemTFT active matrix system

* Number of pixels2,764,8001280H x 720V x RGB

* Effective pixels99.99%

* Pixel arrangementRGB striped arrangement

* Back lightingLED

USB I/F Section :

* USB StandardUSB2.0 High Speed

* File SystemFAT 16/32, exFAT, NTFS

* Maximum Power Supply CurrentDC5V=1.5A

* D/A Converter24/32Bit

* Audio DecoderMP3 / WMA / AAC / WAV / FLAC / DSD / Vorbis

* Video DecoderMPEG1/2,MPEG4 / WMV / H.264 / MKV

* Frequency response 192k Sampling20 - 88,000 Hz?????

* 96k Sampling20 - 44,000 Hz?????

* 48k Sampling20 - 22,000 Hz?????

* 44.1k Sampling20 - 20,000 Hz

* Total harmonic distortion 1kHz0.010%

* Signal to Noise ratio98.5dB

* Dynamic range89dB

Wireless Mirroring Section :

* Mode?Sink

* Copyright protection?HDCP2.2

* Touch Control ?UIBC

Wi-Fi :

* IEEE Standard ?802.11 a/b/g/n/ac

* Frequency Range ?Dual Band ( 2.4GHz / 5GHz )

* Channels ?Auto(1-11ch)Auto(149,153,157,161ch)

* Transfer rates (MAX) ?11a: 54 Mbps / 11b: 11 Mbps /11g: 54 Mbps / 11n: 300 Mbps /11ac: 867 Mbps

* Output Power 2.4GHz/SISO ?11b:13dBm±2dB / 11g:11dBm±2dB /11n(20MHz):10dBm±2dB

* Output Power 5GHz/SISO ?11a:6dBm±2dB /11n(20MHz):6dBm±2dB / 11n(40MHz):5dBm±2dB /11ac(20MHz):6dBm±2dB / 11ac(40MHz):5dBm±2dB / 11ac(80MHz):5dBm±2dB

* Output Power 5GHz/MIM ?O11n(20MHz):9dBm±2dB / 11n(40MHz):8dBm±2dB /11ac(20MHz):9dBm±2dB / 11ac(40MHz):8dBm±2dB / 11ac(80MHz):8dBm±2dB

Bluetooth Section :

* TechnologyBluetooth ? Ver5.0

* Frequency ?2.402 – 2.480 GHz

* RF Output Power (E.I.R.P.) ?+4dBm (MAX), Power Class 2

* Maximum Communication range?Line of sight approx.10m(32.8ft)

* Audio Code ?cSBC / AAC / LDAC

* Multi Profile Support ?Multi Profile

* Profil HFP ?(V1.7) (Hands Free Profile)SPP (Serial Port Profile)A2DP (Advanced Audio Distribution Profile)AVRCP (V1.6) (Audio/Video Remote Control Profile)PBAP (Phonebook Access Profile)

HDMI :

* Connector Type ?Type A

* Input Resolution ?VGA (640x480p @59.94Hz/60Hz)480p (720x480p @59.94Hz/60Hz)720p(1280x720p 59.94Hz/60Hz)

* Input Audio Type ?32K/44.1K/48K/88.2K/96K/176.2K/192K 16/20/24-bit Linear PCM

DSP Section :

* Graphics equalizer

* BAND ?13Band

* Frequency ? (Hz) (BAND1-13)62.5/100/160/250/400/630/1k/1.6k/2.5k/4k/6.3k/10k/16k

* Gain ?-9/-8/-7/-6/-5/-4/-3/-2/-1/0/1/2/3/4/5/6/7/8/9[dB]

* 2Way X'Over ?

* HIGH PASS FILTER frequency ?Through/30/40/50/60/70/80/90/100/120/150/180/220/250[Hz]

* SLOPE ?-6/-12/-18/-24[dB/Oct.]

* LOW PASS FILTER frequency ?30/40/50/60/70/80/90/100/120/150/180/220/250/Through[Hz]

* SLOPE-6/-12/-18/-24[dB/Oct.]

* 3Way X'Over

* HIGH PASS FILTER frequency ?250/300/1k/1.6k/2.5k/4k/5k/6.3k/8k/10k/12.5k

* SLOPE ?-12/-18/-24[dB/Oct.]

* Band PASS FILTER frequency ?Through/50/60/70/80/90/100/120/150/180/220/250/300[Hz]

250/300/1k/1.6k/2.5k/4k/5k/6.3k/8k/Through

* SLOPE??-12/-18/-24[dB/Oct.]

* LOW PASS FILTER frequency ?30/40/50/60/70/80/90/100/120/150/Through[Hz]

* SLOPE ?-12/-18/-24[dB/Oct.]

* Position

* Front / Rear /Subwoofer Delay ?0 - 6.1m (0.01m Step)

* Gain ?-8 to 0dB

* Subwoofer Level ?-50 to +10dB

FM :

* Frequency Range ?87.5MHz - 108.0MHz

* (Frequency step) ?(50kHz)

* Usable sensitivity S/N30dB ?7.3dBf (0.7?V) /75?

* Frequency response?(±3.0dB)30Hz - 15kHz

* S/N (dB) ?70dB (MONO)

* Selectivity ?80dB (±400kHz)

* Stereo separation ?45dB (1kHz)

AM:

* Frequency Range ?531kHz - 1611kHz

* (Frequency step) ?(9kHz)

* Usable sensitivity ?30dB? (31?V)

Video :

* Color system of external video input ?NTSC/PAL

* External audio max input level (Mini jacks) ?2 V / 25 kOhms

* Video Input level (RCA jacks) ?1 Vp-p / 75 Ohms

* Video Output level (RCA jacks) ?1 Vp-p / 75 Ohms

* Audio Output level (Mini jacks)0.9 V / 10 kOhms

Audio :

* Maximum Power Output (Front&Rear) ?50Wx4

* Typical Power Output (Front&Rear) ?Full Bandwidth Power(at less than 1%THD)22Wx4

* Output frequency band20 - 88,000Hz

* Preout level (V) ?5V / 10kOhms

* Preout impedance (?) ?=< 300 Ohms

* Speaker Impedance (?) ?4-8 Ohms

General :

* Operating voltage12V DC Car Battery

* Installation Dimensions WxHxD178 × 100 × 155 (mm)

* Weight Main unit3.25 kg
